MB-A 2000mm Stainless steel Quick clearance Food delivery and
cleaning standard small washed stainless steel conveyor
1.Product Description
Small belt conveyor is a belt conveyor series consisting of mini,
washing, medium three types, all 17 kinds of machines. Rich
changes, free design layout ,The small and medium frame is made of
aluminum extruded material, which is not only beautiful in
appearance but also light and solid in weight.The washable type is
made entirely of stainless steel and washable.Small dynamic belt
conveyors are also easy to operate because of their simplicity.
2. Specification
Standard transfer direction → for each type of machine is the
standard direction of moving and delivering.
1. The terminal drive way is to drive the side of the transfer for
the standard transfer direction(1) The terminal drive way is to
drive the side of the transfer for the standard transfer
direction(2) the center drive way is to install the chain cover on
the right side of the delivery direction as the standard delivery
direction.
2. The positive and negative operation of all types of machines and
standard specifications cannot be made due to factors such as
reduced capacity of moving forward and winding. When you wish,
please make a special "prevent bending type".
3. Only the reverse direction of the standard delivery direction
can operate. (except MB-ED)
Standard specifications(mm) | | | | | | | |
| The belt width | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Machine wide | 94 | 119 | 144 | 194 | 244 | 294 | 344 | 394 | 444 |
| The captain | 1000,1500,2000,2500,3000 | |
| Drive way | The belt drive | |
| Frame | Aluminium (height 30) | |
| The belt | Polyurethane resin belt (suitable for food hygiene) | |

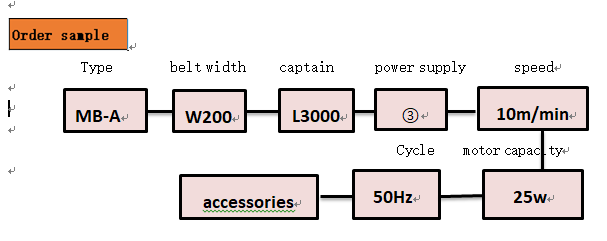

| The motor capacity | 25w.40wSelect motor capacity when you order the sample | |
| power supply | AC100V(Single phase)AC200V(Single phase)AC300V( Use changing speed) | |
| Speedtable | | | | | | | | | |
| The power supply | gear ratio | 50Hz | 60Hz | | 1000 | 1500 | 2000 | 2500 | 3000 |
| Constant speed | 1/120 | 2.5 | 3 | 50 | 10.1 | 11 | 12 | 12.9 | 13.9 |
| 1/60 | 5 | 6 | 75 | 10.4 | 11.4 | 12.4 | 13.4 | 14.4 |
| 1/36 | 8.3 | 10 | 100 | 11 | 12.1 | 13.3 | 14.4 | 15.6 |
| .1/30 | 10 | 12 | 150 | 12 | 13.3 | 14.7 | 16 | 17.4 |
| .1/20 | 15 | 18 | 200 | 13 | 14.6 | 16.2 | 17.8 | 19.4 |
| .1/15 | 20 | 24 | 250 | 14 | 15.8 | 17.6 | 19.4 | 21.2 |
| Variable speed | 1/120 | 1~2.5 | 1.2~3 | 300 | 14.9 | 16.9 | 18.9 | 20.9 | 22.9 |
| 1/60 | 2~5 | 2.4~6 | 350 | 16 | 18.3 | 20.5 | 22.8 | 25 |
| 1/36 | 3.3~8.3 | 4~10 | 400 | 17 | 19.5 | 22 | 24.5 | 27 |
| .1/30 | 4~10 | 4.8~12 | | | | | | |
| .1/18 | 6.7~16 | 8~20 | | | | | | |
3. Application
| Application field |
| Eating meat | Surface package | Dairy products |
| fish | Thevalleyofcontent | Vegetable dishes |
| Some heart | sugar | Smoke raw material |
Flags: cannot all be interfered
※ Note: The belt and the top pulley will slide once oil and water
get between the belt and the top plate.
The outer skin of the belt is sometimes swollen, sometimes hardened
and sometimes broken down according to oil and drugs. This
occasion, will cause the belt deformation, become unusable.
4.Advantages
Belt conveyor because of the simple structure, easy maintenance,
conveying a wide variety of materials, so in the industrial
enterprises are widely used. What are the advantages of BAI?
1,A wide range of materials can be transported from very fine
powders to lumps of ore, stone, coal or pulp wood, conveying finely
sifted or fragile materials with minimal drop. Because of the high
corrosion resistance of rubber conveyor belt, the maintenance cost
is relatively low when conveying strong corrosion or wear
materials. Belt conveyor can also transport alkaline materials and
a certain temperature of hot materials, can also transport into a
piece of goods.
2, the conveying capacity of a wide range of belt conveyor can meet
any requirements of the conveying task, both light belt conveyor to
complete the conveying task of small conveying volume, and a large
belt conveyor to achieve thousands of tons or even tens of
thousands of tons per hour of the conveying task.
3, the conveyor line of strong adaptability belt conveyor can adapt
to the slope of 30% to 35% of the terrain, but for truck transport
can only adapt to the original natural area shape of the slope of
6% to 8%. Conveyor lines can be adapted to the terrain, curved in
space and horizontally to reduce infrastructure investment, and can
avoid interference from railways, roads, rivers and mountains in
factories or other crowded areas. The belt conveyor has a very
flexible transport line, line length can be extended according to
the needs. 4, flexible loading and unloading material belt conveyor
can be flexibly according to the requirements of the process flow
from one point or more points, can also be to more points or
several sections of discharge.
5, strong reliability, the reliability of belt conveyor has been
confirmed by all use the experience in the field of industrial, its
operation is reliable, in many important production units need to
run continuously, such as conveying coal in power plants, steel
mills and cement material within the transportation and the port of
ship handling material, etc., have been widely used.
6, high safety belt conveyor has a high safety, the need for
production personnel is very small, compared with other modes of
transportation the chance of accidents is relatively small. It will
not cause an accident if a large piece of material falls and
injures a person or if the control of a large, heavy vehicle fails.
7. Low cost The labor hours and energy consumption required by the
belt conveyor system to transport each ton of bulk materials are
usually the lowest among all the bulk materials transportation
tools. And it takes up less time of maintenance personnel, the
repair and replacement of smaller parts can be completed in the
field quickly, the maintenance cost is low.
5.List of oil resistance and drug resistance
The outer skin of the belt is sometimes swollen, sometimes hardened
and sometimes broken down according to oil and drugs. This
occasion, will cause the belt deformation, become unusable.
| Cooking oil | Linseed oil | △ |
| Linseed oil | △ |
| Corn oil | △ |
| Animal oil | ○ |
| Vegetable oil | ○ |
| Coconut oil | △ |
