    Anti Rust 100KG 150KG Galvanized Pipe Roller Chain Conveyors

    Ask Lasest Price
    Brand Name : pengya
    Model Number : CLA&AC-C
    Certification : ISO
    Price : Please Contact Us For The Price
    Delivery Time : about week days
    Supply Ability : For more than a week
    Payment Terms : T/T,
    • Product Details
    • Company Profile

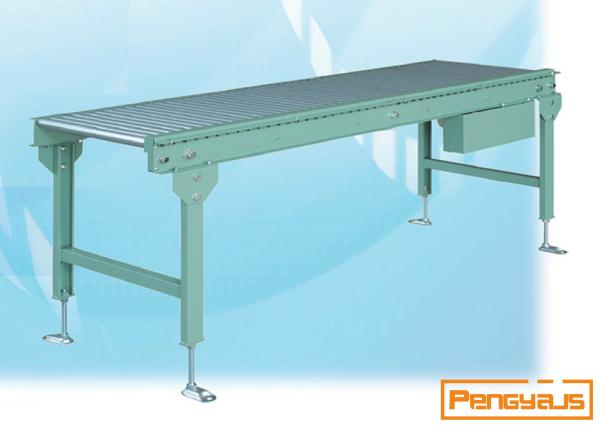

    Anti Rust 100KG 150KG Galvanized Pipe Roller Chain Conveyors

    100-150kg boxes and pallets or tire chain roller conveyors


    Standard style:

    TypeCLA100AC-C100CLA150AC-C150
    Transporting conveyorCumulative conveyorTransporting conveyorCumulative conveyor

    Main style

    Maximum handling weight(kg/m)100150
    Wheel size D×t(mm)φ48.6×1.6φ57×2.1
    Shaft diameter d(mm)Φ12(pipe)Φ12(stick)
    Frame sizeF×G×T(mm)[90×30×2.3[90×30×2.3
    Actual wheel size, width(mm)WW+2W
    Machine width MW(mm)W+103W+103
    Machine internal width NW(mm)W+43W+43
    Sprocket size(mm)No.40×N9No.40×N10
    Sprocket materialsteelsteel

    Production range

    Roller width W(mm)400∼800300∼1000300∼800
    Roller interval P(mm)75・10075・100・150・200
    Machine length L(mm)900∼120001500(1600)∼12000
    Machine height H(mm)460∼1000460∼1000
    Motor capacity (kW)0.2・0.40.2・0.4
    Handling speed(m/min)50hz10∼365∼32
    60hz10∼360.2kW:5∼32
    0.4kW:6∼32
    Power supply (v)200・220200・220

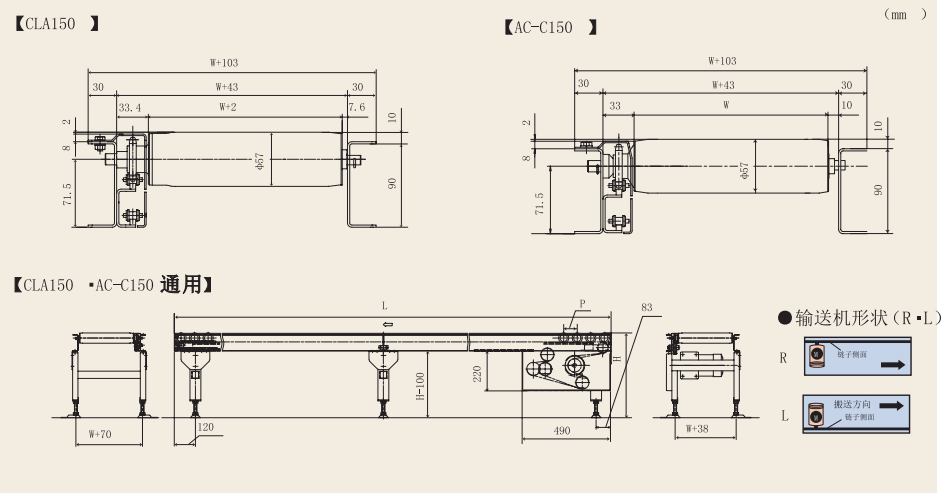

    Dimensions:


    Product Description:
    1. The main structure of the equipment is made of high-strength plate bending and robot welding;
    2. The rollers adopt galvanized pipe, which has high corrosion resistance .
    3. Adopt the most advanced CNC bending machine to bend;
    4, Suitable for conveying all kinds of flat materials, the transmission is flexible and not deviation. Such as: carton, wood, ceramics, etc.;
    5, The main beam feet spray plastic, roller surface electroplate, with good anti-rust effect,and more durable;
    6, The height of the feet can be adjusted to meet the uneven ground demand.


    Note:If you are the ultimate owner,You can contact us to choose the model.
