    80kg Stainless Steel Belt Conveyor

    Ask Lasest Price
    Brand Name : pengya
    Model Number : MB-I
    Certification : ISO
    Price : Please Contact Us For The Price
    Payment Terms : T/T,
    Supply Ability : For more than a week
    Delivery Time : about week days
    • Product Details
    • Company Profile

    80kg Stainless Steel Belt Conveyor

    Mb-B Stainless steel washing belt conveyor factory direct sales White pvc food grade belt Load 80kg


    Features

    *washable

    The equipment has a stainless steel frame, rollers, and shell;Washable cleaning conveyor.


    *Use waterproof safety cover

    The drive unit can be installed at a desired position by center driving.In addition, because of the safety cover (waterproof),The motor will not be immersed in water during washing.

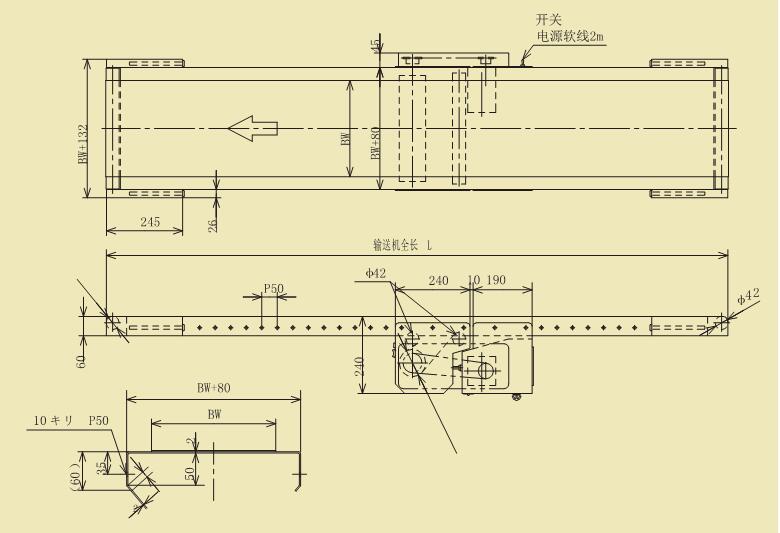

    Standard specifications(mm)

    Belt width300400500
    Machine width380480580
    Machine length2000/3000/4000
    Drive methodCenter drive
    FrameSUS304(High60)
    BeltPolyurethane resin belt (in accordance with food safety standards)
    Motor capacity40W,60W,90W
    power supply①AC100V(Single phase)②AC200V(Three-phase)Please use the transmission when shifting gears

    Speed form(m/min)

    PowerGear ratio50Hz60HzMotor capacity

    Fixed speed

    1/1202.5340W
    1/605660W
    1/407.5960W
    1/30101290W
    1/20151890W
    1/15202490W

    Gear shift

    1/1200.8~2.51~340W
    1/601.7~52~660W
    1/402.5~7.53~960W
    1/303.3~104~1290W
    1/205~156~1890W
    1/156.7~208~2490W

    Substantially the entire weight of the machine(kg)

    Machine length

    Belt width

    200030004000
    30042.751.760.2
    40049.660.270.8
    50056.468.881.2


    If you have customized requirements,Please provide the product size, weight and required conveying speed,Or the requirements for the brand of purchased parts,We will provide reasonable suggestions and quotations.
