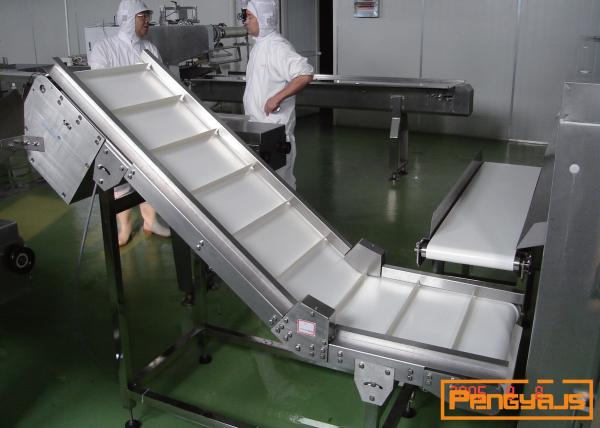

180 Degrees Inner Radius 200mm Inclined Stainless Steel Belt Conveyor

    Buy cheap 180 Degrees Inner Radius 200mm Inclined Stainless Steel Belt Conveyor from wholesalers

    Buy cheap 180 Degrees Inner Radius 200mm Inclined Stainless Steel Belt Conveyor from wholesalers
    • Buy cheap 180 Degrees Inner Radius 200mm Inclined Stainless Steel Belt Conveyor from wholesalers
    • Buy cheap 180 Degrees Inner Radius 200mm Inclined Stainless Steel Belt Conveyor from wholesalers
    • Buy cheap 180 Degrees Inner Radius 200mm Inclined Stainless Steel Belt Conveyor from wholesalers

    180 Degrees Inner Radius 200mm Inclined Stainless Steel Belt Conveyor

    Ask Lasest Price
    Brand Name : pengya
    Certification : ISO
    Price : Please Contact Us For The Price
    Delivery Time : about week days
    Payment Terms : T/T,
    Supply Ability : For more than a week
    Model Number : Mb-g
    • Product Details
    • Company Profile

    180 Degrees Inner Radius 200mm Inclined Stainless Steel Belt Conveyor

    Mb-g/Mini curve (180 degrees)Inner radius: 200mm. Good durability and stable curve transport.

    Small belt conveyor is a belt conveyor series consisting of mini, washing, medium three types, all 17 kinds of machines. Rich changes, free design layout ,The small and medium frame is made of aluminum extruded material, which is not only beautiful in appearance but also light and solid in weight.The washable type is made entirely of stainless steel and washable.Small dynamic belt conveyors are also easy to operate because of their simplicity.

    MB-G180degree
    Effective belt width400
    The inside of the R200
    Move to send highlyminimum is 400 and maximum is 900
    Effective belt widthPolyurethane resin belt (in line with food safety standards)
    The motor capacity90W
    Maximum delivery volumeConstant speed: 15kg/ set variable speed: 11kg/ set
    power supplyAC200w(three phase)

    The characteristics of The movement of the goods was smooth.Compact and simple construction. And because the belt pulley diameter is small, it can realize the smooth movement of goods.

    The compact design (with an inner R of 200mm) is original up to the details. Alone led by the precision technology, with a variety of advanced technology to implement the production, the realization of high quality performance precision durability.

    Quiet and clean design Quiet and quiet. Good anti-vibration and clean design.

    Ontology outline Mass (kg)
    wide captain200300400
    45degrees192328
    90degrees263340
    180degrees415365
    pulley diameter200300400
    ΦAΦ35Φ29Φ25
    ΦBΦ72Φ73Φ73
    ΦCΦ54Φ51Φ49

    The belt width BW200 BW300 BW400
    power supplyVariable speed than50Hz60Hz50Hz60Hz50Hz60Hz
    Constant speed1,21/1202.93.52.73.32.73.2
    1/605.875.56.65.36.4
    .1/3011.6141113.210.712.7
    Variable speed1,21/1201~2.91.2~3.50.9~2.71.1~3.30.9~2.71.1~3.2
    1/601.9~5.82.3~71.8~5.52.2~6.61.8~5.32.1~6.4
    .1/313.9~11.64.7~143.7~114.4~13.23.6~10.74.2~12.7
