AC220V 0.12output aluminium profile Flat top chain plate Tabletop
chain Chain plate conveyor line
Features
The layout of equipment is flexible different types of chain boards
can be selected according to the conveying products to complete
horizontal,turning and inclined conveying;Single row conveying can
be used for beverage labeling,filling,cleaning and so on.Multi-row
conveying can meet the requirements of a large number of feding
materials for sterilizers,bottle buffering and bottle cooler;
Making the two chain plate conveyor lines into a mixed chain with
overlappping head and tail can make the containers in a dynamic
transition state,and no bottles are left on the conveyor line
,which can satys foy the pressre-free convering of empty bottles
and filled bottles.It is widely used in food filling
,pharmaceuticals,cosmetics,detergents,paper
products,condiments,dairy products and tobacco industries.
In the automatic production line occupies a very important position
of the equipment is the conveyor, it is the most important bulk
material transport and loading and unloading equipment. The chain
plate conveyor is the most common type of conveyor [2].
Chain conveyor can meet drink labeling, filling and cleaning
equipment such as single delivery requirement, also can make a
single column and more walking slowly, resulting in storage
capacity, satisfy the bottle sterilization machine, machine, cold
bottle machine of feeding requirements, we can be two chain
conveyor head tail made superimposed mixed chains, make the bottle
(tank) in dynamic excessive condition, make the transmission line
is not stranded in the bottle, can satisfy the empty bottles and
bottles of pressure and without pressure.
Chain plate: carbon steel, stainless steel, thermoplastic chain,
according to your product needs can choose different width,
different shape of chain plate to complete the plane transport,
plane turning, lifting, dropping and other requirements.
| Model | DR-LBZX | DR-LBZW |
| Power | AC 220V/sph | AC380V/3ph |
| Output | 0.12 | 0.18 |
| Frame material | aluminium profile | Carbon steel |
| Chain material | Flat top chain plate | Anti-slip chain plate, |
| Chain type | Tabletop chain | Anti-slip chain , |
| Chain width W2(mm) | 63.5 | 82.6 |
| Conveyor width W(mm) | 90-500 | |
| Conveyor length(mm) | <30000 | |
| Conveyor length L(mm) | 700 | |
| speed (m/min) | <45 | |
| Load(kg) | <50 | |
| working tension | <1250 | |
| Working temperature | -20~ 60°C | |
| Radius(mm) | >610 | |
| Accessories | Side baffle | roller baffle |

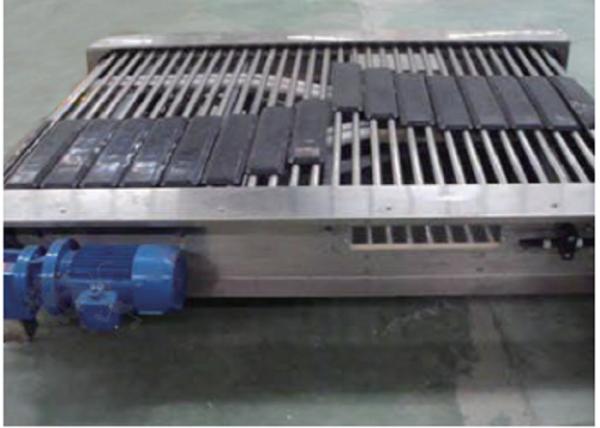

Chain plate conveyor is composed of power unit (motor), drive
shaft, roller, tensioning device, sprocket, chain, bearing,
lubricant, chain plate and so on. Among them, the main two parts
that drive the conveying of materials are: the chain, which
provides traction power with its cyclic reciprocating motion; Metal
plate as the carrier in the transport process. Its principle is
mainly to use a series of chains fixed on the traction chain to
provide traction, using the metal plate as a carrier to lead the
material along the horizontal or inclined direction of transport.
Chain plate conveyor is widely used in all walks of life, power,
metallurgy, wine, chemical, medical, machinery manufacturing and so
on a broad field. In order to meet the various requirements of the
production site, we can carry out a specific design of the conveyor
machine in the automation line to achieve the requirements and
objectives.
