    Right Angle Diverter 200V 70mm Stroke Pallet Flow Conveyor

    CAM DIVERTER CAM DIVERTER (loading CAM DIVERTER) tray conveyer with right Angle DIVERTER device


    Chain conveyor loading type

    In the case of the roller conveyor installed in the case and according to the tray bottom shape of different cases can be used chain conveyor loading.

    It is cheap and easy to use because it is loaded with a chain conveyor. Stroke is 70 mm.

    Internal installation type of driver

    The power supply of the conveyor and the direction changer are all 200V three-phase

    The production range of the conveyor is the width inside the chain core and the length of the fuselage. The production unit is 1mm.

    The inner width of the conveyor chain core (C) production range will vary according to the different CAM direction converter

    The fuselage width of the loading conveyor PDC10-12 and PDC20-12 will vary according to the speed of the conveyor, please note.

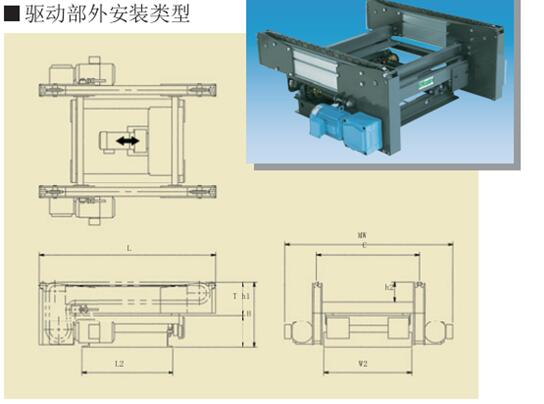

    As for the motor installation position, there are two kinds of internal installation and external installation.

    Please install the chain conveyor inboard when it is installed. It is the very cheap type

    In the installation of the roller conveyor, must be installed outside, because the internal motor will affect the driving part

    Maximum loadChain modelsSingle model of loading conveyorInstallation location of drive unitCAM direction changerThe inner core width of conveyor chainConveyor width(From the outside of the fuselage)ww(mm)The fuselage height(Cold program)H(mm)Conveying height h1(mm)h2The fuselage length
    500MX60Plate chainPCC05-11In the installation typeCV3-0307A820`1000C+60422492200-700`1200
    CV3-0307B720`1100
    MX60Plate chainPCC05-12The installation outside the typeCV3-0307A700`1400C+388434504212125
    CV3-0307B800`1500
    1000MX80Plate chainPCC10-11In the installation typeCV3-1007A620-11--C+60440510210-800`1200
    CV3-1008B720`1100
    CV3-1008C820`1200
    PCC10-12The installation outside the typeCV3-1007A700`1400c+445(50Hz)12-15m/min c417Except for above speeds456526226135
    CV3-1008B800`1500
    CV3-1008C900`1600
    2000NO.80Plate chainPCC20-11In the installation typeCV3-2007B720`1100C+78497567214-1100-1500
    cv3-2007C820-1200
    CV3-2007D930`1300
    NO.81Plate chainPCC20-12The installation outside the typeCV3-2008B800`1500C+44%(59Hz)9`15m/min时60Hz 11`15m/min时) C+50Hz(Except for above speeds)516586233114
    cv3-2008C900-1600
    CV3-2008D1000`1700

    Standard specification of conveyor loading CAM direction conversion machine is not installed table version.

    The standard specification of the conveyor loading CAM direction converter is dark blue

    CAM direction change machine can be bought only (not including conveyor).
